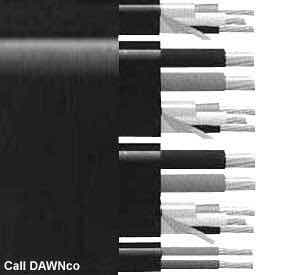

Fifteen (15) conductor cable for 2-motor satellite antenna, to link outdoor satellite antenna motors and sensors with indoor controller. Consisting of 15 conductors with 4 individually jacketed groups cabled together and jacketed overall (call for details on conductor sizes). Available on 500ft reels.

View PDF

Composite control cable includes 15 separate cables, and consists of four individually jacketed groups (elements 1 through 4) cabled together and jacketed overall with polyethylene. Element #1 (use for ECONOMICAL FEED power & sensor or pot on HQ FEED). Conductor = 20 AWG stranded bare copper. Insulation = polyvinyl chloride .008 inch nominal wall, Color code, 1 Black 1 Red 1 White. Shield = aluminum-polyester tape with 100% coverage (aluminum side out). Drain wire = stranded tin copper. Individual Jacket = polyvinyl chloride .015 inch nominal wall, Color code, Black with red stripe. Element #2 (use for MOTOR & SENSOR on elevation drive). Conductor # 1 = 22 AWG Stranded Bare copper. Insulation = Polyvinyl Chloride .008 in nominal wall, Color code, 1 Green, 1 Black, 1 White. Individual Shield = Aluminum- Polyester tape, 100% coverage (aluminum side out). Drain Wire = stranded tin copper. Conductor # 2 = 14 AWG Stranded Bare Copper. Insulation = Polyvinyl Chloride, .010 inch nominal wall, Color code 1 Black 1 Red. Individual Jacket = Polyvinyl Chloride, .015 inch nominal wall, color code Black. Element #3 (use for MOTOR & SENSOR on azimuth drive). Conductor # 1 = 22. Stranded Bare copper. Insulation = Polyvinyl Chloride .008 inch nominal wall, Color code 1 Blue, 1 Black, 1 White. Individual Shield = Aluminum-Polyester tape,100% coverage (aluminum side out). Drain Wire = Stranded tin copper. Conductor #2 = 14 AWG stranded bare Copper. Insulation = Polyvinyl Chloride .010 inch nominal wall, Color code 1 black 1 Red. Individual Jacket = Polyvinyl Chloride .01.5 inch nominal wall, Color code Black. Element # 4 (when antenna has HQ FEED use for powering HQ Feed). Conductor = 18 AWG Stranded Bare Copper. Insulation = Polyvinyl Chloride .008 nominal wall, color code 1 Red, 1 White. Individual Jacket = Polyvinyl Chloride .015 inch nominal wall, Color- Black with white stripe. Overall Assembly, Construction = The four individually jacketed groups are cabled together with an overall polyethylene jacket. Overall jacket = Low density Polyethylene .030 inch nominal wall .580 inch nominal O.D., Color- Black. Approximate shipping weight = 174 lbs/reel.
